Ürün ayrıntıları:
|
| Material: | cold rolled steel with powder coated | Lock type: | Mechanical interlock |
|---|---|---|---|
| Size(mm): | 685*460*590 | Color: | white |
| Type: | Clean Room Booth | Application: | Small Area |
| Vurgulamak: | clean room pass thru,cleanroom pass through chambers |
||

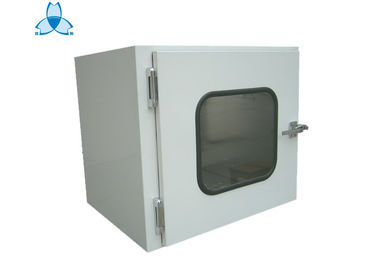

Laboratory Pharmaceutical Clean Transfer Window / Air Shower Pass Box
Transfer window come with a mechanical or electrical interlock system so that only one door can be opened at a time.
Transfer window are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.
Standard Features
Optional Features
Application
It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.
The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.
Standar size:
| Model | ZS-CC1 | ZS-CC2 | ZS-CC3 |
| External dimensions (W x D x H) | 685x460x590 | 785x660x690 | 985x660x890 |
| Size for working area ((W x D x H) | 500x400x500 | 600x600x600 | 800x800x600 |
| Material | Cold rollled steel with powder coated for outside, stainless steel for inside | ||
| Lock type | mechanical interlock | ||
| Windows | Clear Acrylic sheet | ||
we can offer special size and requirement as per our clients.
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
